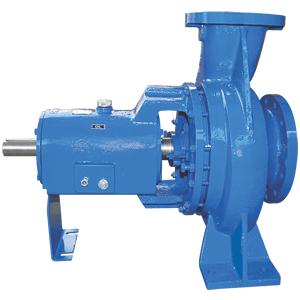

FPE - FM series
AS PER ISO 2858 / DIN 24256 |
|
| Capacity up to : | @750 M3/Hr. |
| Temp. up to : | 250° C |
| TDH up to : | 140 MLC |
| Working Pr. up to : | 40 Bars |
| Delivery Size up to : | 250 mm |
| Industries Covered | |
| Pharmaceuticals & Chemical | Oil Extraction Plants |
| Pulp & Paper Industries | Waste Oil Refining Plants |
| Starch Industries | Air-Conditioning / Heating Plants |
| Effluent Treatment Plants | Cooling Tower Water Circulation |
| Dyes & Intermediates | Solvent Transfer |
| RO & DM Water Plants | Thermic Fluid Circulation |
Material of Construction :
Pumps are manufactured in variety of materials such as
- Stainless Steel as per ASTM A 351/743 Gr. CF8, CF8M, CF3, CF3M, CD4MCu, CN7M(Al 20).
- Duplex Steel as per ASTM A 890/890M.
- Nickel Alloys as per ASTM A 494 / 494M Gr. Hastelloy B- C, CZ 100 (100% Nickel ).
- Other Alloys: SS 2324 / 2%NiCI / Ni-Resist / D2B / Monel / Inconel 600 / R-55 / Ni 200.
- Cast Iron & special Alloy Cast Irons, SG Iron / Ductile Iron.
- Carbon Steel / WCB.
- Bronze / Alluminium & Various Non Ferrous Alloys.
Constructional Features :
Pumps are as per DIN 24256 and ISO 2858. The design is of back pull out type. Large variety of models are available to operate at 1450 rpm and 2900 rpm at 50 Hz and 1750 rpm and 3500 rpm at 60 Hz.
Casing :
The casing has axial suction and top centre line delivery. Smooth hydraulic passages ensure high efficiency. Normal design is for foot mounted pumps.
Impeller :
The impellers are of enclosed type and semi-open impellers can also be supplied. Hydraulic balancing of impellers is achieved either by back wear ring. The impellers are statically and dynamically balanced.
Shaft :
The shaft is supported by two antifriction bearings to take residual axial thrust and prevent axial float or radial run out. It is fully protected from the liquid handled by means of a shaft sleeve and PTFE gaskets between impeller nut, impeller hub and shaft sleeve.
Stuffing box :
The stuffing box is sealed by gland packing or by mechanical seal. Conversion from gland packing to mechanical seal is achieved by changing some standardised parts. Re-machining of stuffing box is not necessary.
Bearings :
The bearings are oil lubricated
Direction of rotation :
Clockwise viewed from driving end.
Flanges :
| Standard | Optional |
| Drilling as per ND 16 | DIN ND 10, ND 25 |
| DIN 2533 (Cast Iron Raised face) | ASA 150 BS 10 Table F |
| DIN 2543 (Steel-Plain face) | BS 4504-16 bar or 25 bar |

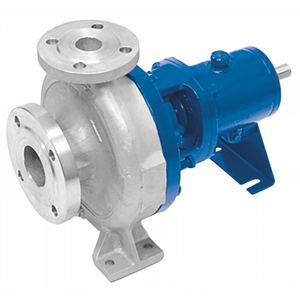

FPE – F series
AS PER ISO 2858 / DIN 24256 |
|
| Capacity up to : | @750 M3/Hr. |
| Temp. up to : | 250° C |
| TDH up to : | 140 MLC |
| Working Pr. up to : | 40 Bars |
| Delivery Size up to : | 250 mm |
| Industries Covered | |
| Pharmaceuticals & Chemical | Oil Extraction Plants |
| Pulp & Paper Industries | Waste Oil Refining Plants |
| Starch Industries | Air-Conditioning / Heating Plants |
| Effluent Treatment Plants | Cooling Tower Water Circulation |
| Dyes & Intermediates | Solvent Transfer |
| RO & DM Water Plants | Thermic Fluid Circulation |
Material of Construction :
Pumps are manufactured in variety of materials such as
- Stainless Steel as per ASTM A 351/743 Gr. CF8, CF8M, CF3, CF3M, CD4MCu, CN7M(Al 20).
- Duplex Steel as per ASTM A 890/890M.
- Nickel Alloys as per ASTM A 494 / 494M Gr. Hastelloy B- C, CZ 100 (100% Nickel ).
- Other Alloys: SS 2324 / 2%NiCI / Ni-Resist / D2B / Monel / Inconel 600 / R-55 / Ni 200.
- Cast Iron & special Alloy Cast Irons, SG Iron / Ductile Iron.
- Carbon Steel / WCB.
- Bronze / Alluminium & Various Non Ferrous Alloys.
Constructional Features :
Pumps are as per DIN 24256 and ISO 2858 and generally conform to API 610 (7th Edition.) The design is of back pull out type. Large variety of models are available to operate at 1450 rpm and 2900 rpm at 50 Hz and 1750 rpm and 3500 rpm at 60 Hz.
Casing :
The casing has axial suction and top center line delivery. Smooth hydraulic passages ensure high efficiency. Normal design is for foot mounted pumps. Center line mounting for special applications are also available.
Impeller :
The impellers are of enclosed type and semi-open impellers can also be supplied. Hydraulic balancing of impellers is achieved either by back vanes or by balancing holes. The impellers are statically and dynamically balanced. Reliable fixing of the impeller on shaft is achieved by using helicoil insert under impeller nut. To improve NPSH performance, inducer can be supplied.
Shaft :
The shaft is supported by two antifriction bearings to take residual axial thrust and prevent axial float or radial run out. It is fully protected from the liquid handled by means of a shaft sleeve and PTFE gaskets between impeller nut, impeller hub and shaft sleeve.
Stuffing box :
The stuffing box is sealed by gland packing or by mechanical seal. Conversion from gland packing to mechanical seal is achieved by changing some standardised parts. Re-machining of stuffing box is not necessary. Stuffing box cooling is provided for high temperature applications.
Bearings :
The bearings are oil lubricated. For high temperature application, bearing oil cooling arrangement is provided.
Direction of rotation :
Clockwise viewed from driving end.
Flanges :
| Standard | Optional |
| Drilling as per ND 16 | DIN ND 10, ND 25 |
| DIN 2533 (Cast Iron Raised face) | ASA 150 BS 10 Table F |
| DIN 2543 (Steel-Plain face) | BS 4504-16 bar or 25 bar |
FPE – F IC series
Chemical Process Pumps |
|
| Capacity up to : | 15 M3/Hr. |
| Temp. up to : | 120° C |
| TDH up to : | 45 MLC |
| Working Pr. up to : | 10 Bars |
| Delivery Size up to : | 25 mm |
| Industries Covered | |
| Pharmaceuticals & Chemical | Oil Extraction Plants |
| Pulp & Paper Industries | Waste Oil Refining Plants |
| Starch Industries | Air-Conditioning / Heating Plants |
| Dyes & Intermediates | Solvent Transfer |
| RO & DM Water Plants | Thermic Fluid Circulation |
Material of Construction :
Pumps are manufactured in variety of materials such as
- Stainless Steel as per ASTM A 351/743 Gr. CF8, CF8M, CF3, CF3M, CD4MCu, CN7M(Al 20).
- Duplex Steel as per ASTM A 890/890M.
- Carbon Steel / WCB.
Centrifugal Process Pump
At SMS Pumps & Engineers, we have been producing, exporting, and providing top-notch
centrifugal process pumps
or
centrifugal chemical pumps
for over 13 years, making us one of the industry’s most sought-after manufacturers in these fields. These spiral-mounted, single-cellular pumps have central and axial suction branches. Additionally, radial impellers that are closed or semi-open are available. The purpose of these impellers is to lessen stuffing box pressure and equalize the holes. intended to pump clean, low-viscosity fluids that are either slightly polluted or free of solid or fibrous materials. Fresh water, seawater, and fuels (diesel, gasoline, and kerosene) are among the frequently pumped fluids via our range of
centrifugal chemical pumps
. Frequently used applications include those related to fuel transfer, chemicals, energy plants, mining, firefighting, irrigation, water supply, water treatment, pressurization, grey water, and so forth. SMS Pump & Engineers is a trusted manufacturer of centrifugal process pumps provides wide range of centrifugal process pumps with FPE – FM series, FPE – F series and FPE – F IC series in the market.
Its purpose is to pump clean, low-viscosity fluids that are marginally contaminated or free of solid or fibre materials. Common applications for pumps include fuel transfer, chemical processing, energy plants, mining, firefighting, irrigation, water delivery, water treatment, pressurization, grey water, dewatering, and maritime. Common fluids pushed include fresh water, seawater, and fuels (diesel, gasoline, and kerosene). This long coupled design is a large, heavy-duty
centrifugal chemical pump
with high flow and high-pressure characteristics. It is particularly easy to maintain because the pump head can be accessed without removing the motor. Our
centrifugal process pump
at SMS Pumps & Engineers has special characteristics that solidify our reputation as the finest
centrifugal chemical pump manufacturer
.
Centrifugal chemical pumps
and motors with independent shafts make servicing easier because just the shaft needs to be changed in the event of a replacement. With a more robust design layout and functionality across their centrifugal process pump ranges, this feature outperforms those of other
centrifugal process pump manufacturers
in the industry. Because of the long coupled design, there is a lot of space between the pump and motor, which keeps fluid out of the motor in the event of a seal failure.
Global standards are met by the
centrifugal chemical pump
that SMS Pumps & Engineers produces, and thus contributes to global supply and demand. Consequently, it assists us in creating a strong reputation as a dependable and affordable
centrifugal process pump exporter
.
Centrifugal Chemical Pump Manufacturer
The centrifugal process pump is a mechanical device designed to work a fluid by means of the transfer of rotational energy from one or more driven rotors, called impellers. Centrifugal chemical pump manufacturer work by converting mechanical energy from a motor into kinetic energy in the fluid being pumped. The impeller rotates at high speed. SMS Pumps & Engineers offer the best range of centrifugal process pumps famous in the market. That is used in different industries. The centrifugal process pump of eliminating air from the pump and suction line to allow air pressure and flooding pressure to cause the flow of liquid into the pump is known as priming.
Centrifugal pumps are pressure-producing mechanical devices that transfer kinetic energy generated from centrifugal force to hydrodynamic energy, resulting in the flow of all kinds of fluids that are required for industrial and municipal processes.
SMS Pumps & Engineers is leading centrifugal chemical pump manufacturer a type of hydraulic device that transforms mechanical energy into hydraulic energy through centrifugal force applied to the fluid. The centrifugal process pump & centrifugal chemical pump which is used in chemical processes, e.g. in oil refineries and the petrochemical industry.
